Automatic Stand Up Pouch Packaging Machine for Doypack – Liquid, Powder, Granule Filling
các sản phẩm
Liên hệ với chúng tôi
|

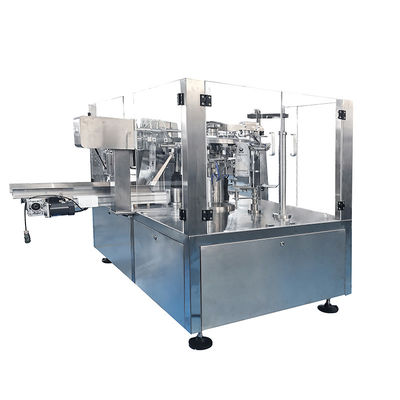

Automatic Stand Up Pouch Packaging Machine for Doypack – Liquid, Powder, Granule Filling
| MOQ: | 1 |
| Giá bán: | Negotiations |
| bao bì tiêu chuẩn: | Bao bì tiêu chuẩn quốc tế cho vận chuyển |
| Thời gian giao hàng: | 30 ngày |
| Phương thức thanh toán: | L/C,T/T, Công Đoàn Phương Tây |
| khả năng cung cấp: | 300 bộ mỗi năm |
Thông tin chi tiết
Nguồn gốc
Thượng Hải
Hàng hiệu
Waylead
Chứng nhận
/
Số mô hình
WG-250
Tài liệu
Tốc độ đóng gói:
≦70 túi/phút
Kích thước túi:
Chiều dài: ≦400mm chiều rộng: 130-260mm
Chất liệu phim:
Túi dẹt, túi đứng, túi dây kéo, túi màng composite và các loại khác.
Nguồn điện:
380V
Tiêu thụ không khí:
5-7kg/cm2; 0,4m3/phút
Loại nguồn:
Điện
Tiêu thụ điện năng:
8 kW
Vật liệu:
Thép không gỉ
Phạm vi đóng gói:
hạt bột lỏng
Mô tả sản phẩm
Product Description :
The Automatic Stand Up Pouch Packaging Machine is a versatile pre-made pouch filler sealer specifically designed for doypack applications. Whether you need to package liquid soap, seasoning powder, granulated sugar, or semi-paste sauces, this machine delivers consistent results with minimal changeover time.
Doypack-Specific Design:
Stand-up pouches feature a bottom gusset that allows the bag to stand upright on store shelves. Our machine includes a bottom gusset opening device that ensures the gusset is fully expanded before filling, preventing product from getting trapped in the folds. This is critical for achieving a professional retail appearance.
Filling System Flexibility:
The machine operates as a platform that accepts multiple filler heads. For liquid filling, a piston filler or flow meter works for juices, oils, and detergents. For paste filling, a servo-driven rotary lobe pump handles ketchup, yogurt, and honey. For powder filling, an auger filler is suitable for flour, protein powder, and coffee grounds. For granule filling, a volumetric cup or multi-head weigher works for rice, nuts, and seeds. For tablet or capsule filling, a counting disc system is available.
Changeover between filler types takes less than 30 minutes using quick-release clamps.
The user-friendly touchscreen control system enables seamless parameter adjustments, ensuring precise filling accuracy with minimal error margins (±1%) and maintaining packaging quality consistency. For powders, the integrated dust-free system prevents emissions, upholding workshop cleanliness and environmental compliance. Liquid products benefit from leak-proof filling nozzles and heat-sealing technology for secure seals and leak prevention, while the anti-blocking feeding mechanism ensures smooth operation with granular products.
Supporting a variety of bag types such as pillow bags, gusseted bags, and stand-up bags, the Doypack Premade Pouch Packing Machine caters to diverse market demands. Constructed from corrosion-resistant stainless steel, it offers durability, ease of maintenance, and an extended service life. We provide tailored capacity options, complimentary technical consultations, prompt delivery, and comprehensive post-sales support. Reach out to us today for a competitive price quote and optimize your production processes efficiently!
Technical Specifications
| Model | WG-210 | WG-250 | WG-300 |
|---|---|---|---|
| Bag Size | Length: 120-380mm Width: 90-210mm |
Length: ≤400mm Width: 130-260mm |
Length: ≤400mm Width: 160-300mm |
| Packing Speed | ≤70 bags/min | ≤70 bags/min | ≤65 bags/min |
| Work Stations | 8 | 8 | 8 |
| Packaging Formats | Flat bags, stand-up pouches, zipper bags, composite film pouches | Flat bags, stand-up pouches, zipper bags, composite film pouches | Flat bags, stand-up pouches, zipper bags, composite film pouches |
| Power Supply | 380V | 380V | 380V |
| Total Power | 8Kw | 8Kw | 8Kw |
| Air Consumption | 5-7kg/cm²; 0.4m³/min | 5-7kg/cm²; 0.4m³/min | 5-7kg/cm²; 0.4m³/min |
| Film Material | Single PE, PE composite film, paper film, various composite films | Single PE, PE composite film, paper film, various composite films | Single PE, PE composite film, paper film, various composite films |
| Machine Weight | 500kg | 580kg | 850kg |
| Machine Dimensions | 1700*1140*1470 mm | 1850*1250*1520 mm | 2100*1500*1520 mm |
Application Range
Block Items
Candy, chocolate, rock candy, biscuits, pastries, peanuts, green beans, pistachios, nuts, cooked food, pickles, puffed foods, daily necessitiesParticles
MSG, chicken essence, sugar, melon seeds, nuts, capsules, granular medicines, seeds, feed, pesticides, fertilizers, chemical raw materialsPowders
Condiments, monosodium glutamate, salt, glucose, refined sugar, milk powder, washing powder, pesticides, fertilizers, chemical raw materialsLiquids
Rice wine, soy sauce, rice vinegar, juice, beverages, detergentsSauces
Tomato sauce, peanut butter, jam, chili sauce, bean pasteOther Materials
Various other products suitable for bagging Advantage Features
- Designed in accordance with GMP standards and CE certified
- Full servo control system for reliable, fast, and precise operation
- Empty bag tracking and monitoring device prevents sealing without bag opening, saving packaging materials
- Eight-station structure with centralized control via programmable PLC and six flat touch screens for simple operation
Complete Packaging Machine Range
Shanghai Waylead Intelligent Technology Co.,Ltd. is specialized in turn-key solutions for packaging processing projects and fruit/vegetable processing lines. The company focuses on packaging equipment, robot applications, fruit and vegetable processing equipment, etc., and is committed to the fruit and vegetable processing industry, baking industry, snack food industry, freeze-drying industry, and powder industry. sauce industry, hardware chemical industry and other one-stop professional services.
Our comprehensive packaging solutions include VFFS machines, flow wrapping machines, heat shrink packaging, pouch packing machines, and complete automated packaging lines with weight inspection, metal detection, carton packing, sealing, coding, and palletizing systems.
Frequently Asked Questions
Are you a trading company or a manufacturer?
We are a manufacturer, providing quality products at factory price. Welcome to visit us!
What quality guarantee or warranty do you provide?
We provide high-quality machines with a 3-year warranty and lifetime technical support.
When can I get the machine after payment?
Delivery time depends on the specific machine model ordered.
How do you provide technical support?
24/7 support via phone, email, or messaging platforms; installation guides and videos; overseas engineering services available.
How does your after-sales service work?
Machines are pre-adjusted before shipment with free training available. Lifetime technical support provided via multiple communication channels.
How about spare parts?
We provide a comprehensive spare parts list for reference.
Can you help with custom design requirements?
Customized design available with our experienced mechanical engineers.
Can you help analyze and design machines for new product samples?
Yes, our technical department can analyze, design, and test new products you provide.
How do I start an order?
30% deposit after signing contract, production arrangement, pre-shipment testing and inspection, balance payment before shipment.
Can you send product catalog and price list?
Electronic catalog available. Please consult us for specific product pricing.
Can I visit your factory?
Yes, welcome to visit our factory at Room 304, Wanchuangfang, No.155 Anzhi Road, Jiading District, Shanghai, China.
Contact Information
Room 304, Wanchuangfang, No.155 Anzhi Road, Jiading District, Shanghai, China
