Model |
WJ-50Robot Palletizing System |
|
Parameter Category |
Specification Details |
|
Load Capacity |
50–500 kg (customizable for heavy-duty applications up to 1000 kg) |
|
Positioning Accuracy |
±0.5 mm (high-precision servo control for stable stacking) |
|
Applicable Product Types |
Bags (woven, plastic, paper), cartons, boxes, barrels |
|
Applicable Pallet Size |
800×1000 mm, 1000×1200 mm (customizable for non-standard pallets) |
|
Stacking Height |
Max 2500 mm (adjustable based on warehouse and forklift requirements) |
|
Robot Axes |
4-axis/6-axis (4-axis for standard palletizing; 6-axis for complex stacking paths) |
|
Control System |
PLC + Touch Screen (user-friendly interface, supports parameter storage for 100+ stacking recipes) |
|
Power Supply |
380V/50Hz 3-phase (or customized voltage for overseas markets) |
|
Energy Consumption |
≤5 kW/h (energy-saving motor, low standby power consumption) |
|
Integration Compatibility |
Seamless connection with conveyor belts, packaging machines, weighing scales |
|
Safety Features |
Safety light curtain, emergency stop button, overload protection, fault alarm system |
|
Reliable Robot Palletizing System with End-to-End Automation
| MOQ: | 1 |
| Giá bán: | Negotiations |
| bao bì tiêu chuẩn: | Bao bì tiêu chuẩn quốc tế cho vận chuyển |
| Thời gian giao hàng: | 30 ngày |
| Phương thức thanh toán: | L/C,T/T, Công Đoàn Phương Tây |
| khả năng cung cấp: | 300 bộ mỗi năm |
automated robot palletizing system
,end-to-end palletizing automation
,reliable robotic palletizer

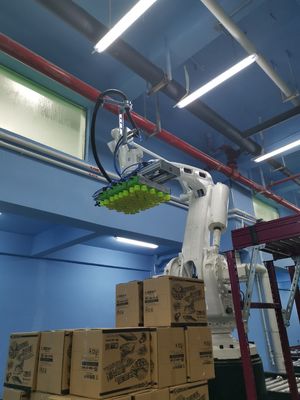

Fully automated Robot Palletizing System
Our Robot Palletizing System seamlessly integrates with automated pallet storage systems, pallet conveyor lines, world-renowned robots, palletizing fixtures, safety fences, and central control cabinets. This high compatibility allows for stable single-line or multi-line fully automated palletizing without workflow bottlenecks.
We provide customized Robot Palletizing System solutions with end-to-end technical support from our experienced engineering team. By sharing your product specifications, output requirements, and layout dimensions, we deliver a turnkey automated solution fully matched to your production needs.
The Robot Palletizing System supports mainstream robot brands from China, Europe, and Japan, with a load capacity ranging from 60 kg to 500 kg. It performs versatile palletizing tasks including single-box, multi-box, full-layer, and woven bag palletizing, widely satisfying diverse demands in modern industrial production lines.
Complete Packaging Machine Range
Our comprehensive packaging solutions include VFFS machines, flow wrapping machines, heat shrink packaging, pouch packing machines, and complete automated packaging lines with weight inspection, metal detection, carton packing, sealing, coding, and palletizing systems.
Shanghai Waylead Intelligent Technology Co., Ltd. specializes in comprehensive turn-key solutions for packaging processing projects and fruit/vegetable processing lines. With a focus on packaging equipment, robot applications, fruit and vegetable processing machinery, among others, the company is dedicated to serving the fruit and vegetable processing, baking, snack food, freeze-drying, powder, sauce, hardware chemical industries, and more, offering all-inclusive professional services. With 15 years of industry expertise and a track record of numerous domestic and international engineering projects, the company delivers top-notch equipment and services to clients.
